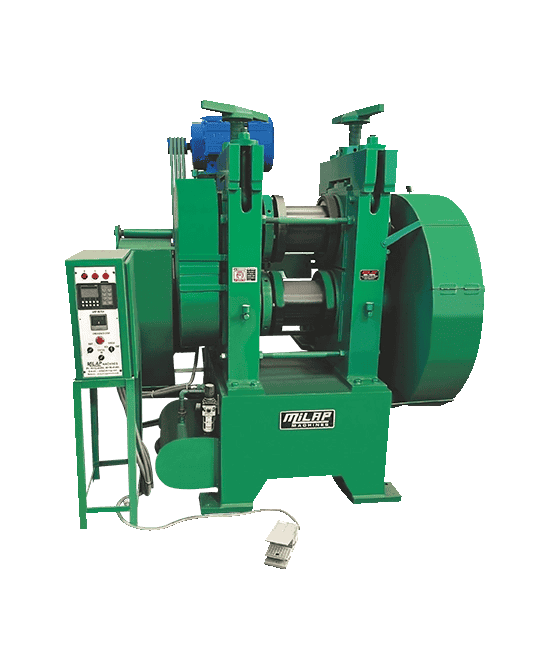

Roll Forge Reducer Machine | MRF Series

Milap Power Press presents the industrial-grade Roll Forge Reducer Machine, specifically designed for high-efficiency mass distribution and pre-forming in the forging industry. Engineered to reduce cross-sections of metal billets with precision, our roll forgers optimize material usage and significantly enhance the production speed of high-quality forged components.

Technical Specifications & Overview

Billet Reduction • High-Speed Pre-Forming • Ludhiana

Milap Roll Forge Reducer: High-Speed Pre-Forming for Modern Forging

Maximize material efficiency and streamline your forging process with Milap’s advanced Roll Forging technology—built for heavy-duty billet reduction.

In high-tonnage forging operations, the preparation of the billet is just as important as the final strike. At Milap Power Press, our Roll Forge Reducer Machines are engineered to redistribute metal mass with precision before it reaches the finishing die. By reducing the cross-section of a heated billet through a series of specialized rolls, this machine ensures that material is perfectly placed for the final forge, significantly reducing flash waste and increasing die life.

Our roll forgers are essential for manufacturing connecting rods, crankshafts, hand tools, and automotive axles. Built with a focus on structural rigidity and high-torque performance, Milap machines provide a faster, more cost-effective alternative to traditional hammer-based pre-forming.

Why Invest in Milap Roll Forging Technology?

The Milap advantage lies in heavy-duty drive systems and precision-machined rollers, engineered to minimize cycle times while maintaining strict dimensional tolerances on the reduced billet:

⚖️

Optimized Mass Distribution

Precision-calibrated rolls shape billet volumes accurately for subsequent forging impressions, cutting flash scrap and raw material costs.

⚙️

High-Torque Drive System

Engineered with heavy-duty forged gears and high-inertia flywheels to execute severe cross-sectional reduction without RPM drop.

🔄

Quick Tooling Changeover

Segmented roll design provides easy operator access, accelerating profile swaps between differing forging batch configurations.

🏛️

Thermal & Structural Rigidity

Heavy-duty, stress-relieved steel housing absorbs vibration and maintains true center-to-center roll alignment in continuous hot-shop environments.

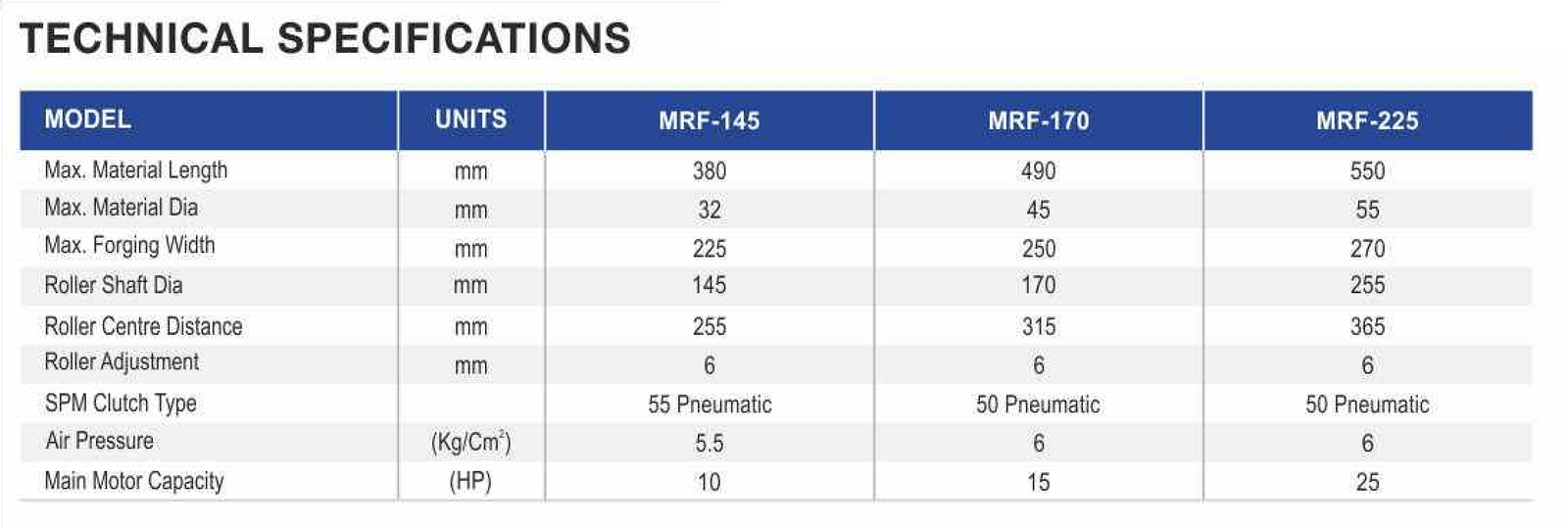

Technical Specifications Blueprint
Milap Roll Forge Reducer Technical Specifications
🔍 Tap to Zoom & Pan Blueprint
Feature Component Milap Engineering Standard
Machine Type Billet Reduction Roll Forge / Reducer Roll Machine
Drive Mechanism High-Performance Heavy Gear & Flywheel Transmission
Roll Segments Hardened Alloy Steel (HCHCr / Special Die Steel) for maximum wear resistance
Operation Control Ergonomic Foot Switch & Dual Push-Button Safety Control
Built for the Rigors of the Forging Shop

Milap Roll Forge Reducer Machines are designed to thrive in the harsh conditions of a hot-forging shop. We utilize high-temperature resistant bearings and centralized lubrication systems to ensure smooth operation despite heat and scale. By reducing the number of blows required in the final hammer or press, our reducer rolls help you achieve higher production rates, lower energy consumption, and a much cleaner finishing process.

Ready to Optimize Your Forging Production?

Decrease your flash waste, protect finishing dies, and expand billet pre-forming throughput. Contact our technical team today for sizing consultations, tooling setups, and factory quotes.

Roll Forge Reducer Blueprint & Dimensions
Zoomed Roll Forge Reducer Technical Specifications
Pinch or use mouse wheel to zoom • Drag to pan across dimensions • Double tap to toggle 2x
📞
